Adam Equipment PTM 500 GK-S

Description

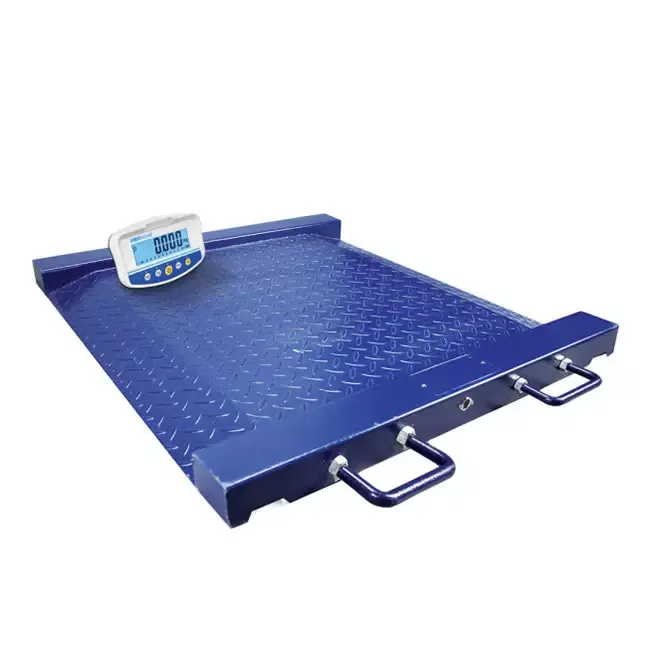

PTM 500 Drum and Wheelchair Platform Scale

• Capacity: 1,100 lb. / 500 kg
• Readability: 0.2 lb. / 0.1 kg
• Repeatability (S.D.): 0.4 lb. / 0.1 kg
• Linearity (+/-): 0.4 lb. / 0.2 kg
• Excitation voltage: 5 to 10V
• Loadcells: 4
• Pan size: 29.9 x 22.8 in. / 760 x 580 mm
• Weighing units: N/A
• Stabilization time (seconds): 2
• Interface: N/A
• Calibration: N/A
• Display: N/A with 0 in. / 0 mm -high digits
• Power supply: N/A
• Operating temperature: -10° to 40°C / 14° to 104°F
• Housing: Mild steel base
• Cable length: 10 ft. / 3m
• Overall dimensions (W x D x H): 40.2 x 31.6 x 3 in. / 1020 x 803 x 75 mm
• Adjustable leveling feet help optimize setups
• Built-in ramps on each side enable easy access
• Diamond-plated surface for added grip
• Heavy-duty rubber feet ensure unit stability
• Integrated wheels permit easy movement
• 3-meter / 10-foot load cell cable
• Rugged construction stands up to industrial use
• Ramps allow easy access for wheelchair use

Applications

• Weighing
• Parts counting
• Percentage weighing
• Checkweighing
• Dynamic / animal weighing

GK-S

• Capacity: Selectable
• Readability: Selectable
• Weighing units: g, kg, lb., oz, lb:oz
• Internal counting resolution: 1:1,600,000
• Interface: RS-232, optional USB (sold separately)
• Calibration: External
• Display: Backlit LCD with 1.6 in. / 40 mm-high digits
• Power supply: 12VDC 800mA adapter, optional internal rechargeable battery (sold separately)
• Operating temperature: -10° to 40°C
• Housing: ABS plastic
• Overall dimensions (D x W x H): 8.7 x 12.4 x 8.3 in. / 300 x 230 x 210 mm
• Capacity tracker built into display so users can easily monitor possible overloads
• Selectable language for printing
• Hold function freezes displayed weight, allowing time to elapse without losing results
• Auto power-off saves energy
• Memory accumulation totals results
• Vivid, backlit LCD easily visible in any lighting
• Large, 1.6 in. / 40 mm-high easily legible digits on bright background
• Solid ABS housing durable for industrial use
• External calibration allows for verification and adjustment with weights
• RS-232 interface provides speedy connection to computers and printers
• Color-changing backlight in checkweighing mode shows if under, over or within acceptable limits
• Simple, 5-key operation allows for easy setup and use
• Wall-mount bracket for placing indicator on vertical surfaces
• 1:1,600,000 Internal counting resolution for precise results
• Selectable digital filtering for animal / dynamic weighing enables consistent results for moving subjects
• Optional USB interface (sold separately) simplifies data communication
• Optional rechargeable battery (sold separately)for operation almost anywhere
