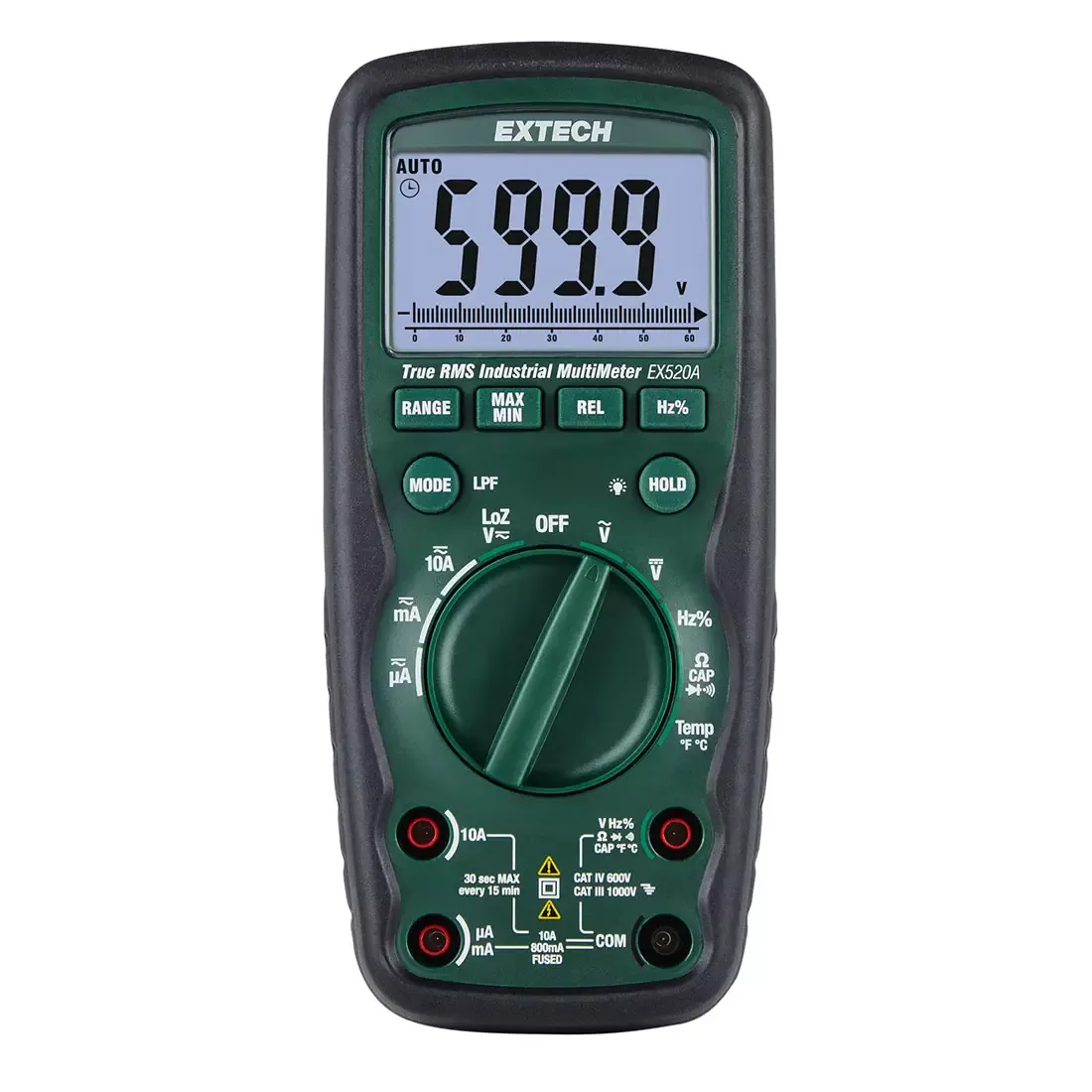

Extech EX520A

Sale!
Extech EX520A

Extech EX520A

Original price was: $124.76.Current price is: $63.40.

78 in stock

SKU: EX520A Category:

Description

  • True-RMS for accurate AC voltage/current measurements, reliable measurements on non-sine waveforms
  • Measures up to 1000V ACV/DCV plus ACA, DCA, resistance, capacitance, frequency, duty cycle, temperature, diode, continuity
  • Waterproof/dustproof IP67-rated rugged design for heavy-duty use
  • 2m (6.5 ft.) drop-tested
  • 1000V input protection on all functions
  • CAT IV 600V electrical safety rating

Specifications

  • Display Counts: 6000
  • Basic Accuracy: +/- 0.09%
  • DC Voltage: 0.1 mV to 1000V
  • AC Voltage: 1 mV to 1000V
  • DC Current: 0.1 uA to 10A
  • AC Current: 0.1 uA to 10A
  • Resistance: 0.1 ohms to 40 Mohms
  • Capacitance: 0.01 nF to 99.99 mF
  • Frequency (Electrical): 0.001 Hz to 10 MHz
  • Frequency (Electronic): 0.01 Hz to 1 kHz
  • Type K Temperature: -45°C to 760°C (-50°F to 1400°F)
  • Duty Cycle: 0.1 to 99.9%
  • Features: Diode/Continuity, LoZ, Low Pass Filter, Backlight, Bar Graph, Range, Relative, Auto Power-Off
