Alarm History Function – Easy search of event dates and history
Enhanced CH to CH Calculation – New calculation functions added
Memory Loop Function – Enables recording for longer periods of time
G-Remote Cloud Server Service – Easy remote control and data storage
Input
Adoption of M3 screw type terminal facilitates wiring
Enables settings to be made using dedicated keys and interactive menus, using just one hand

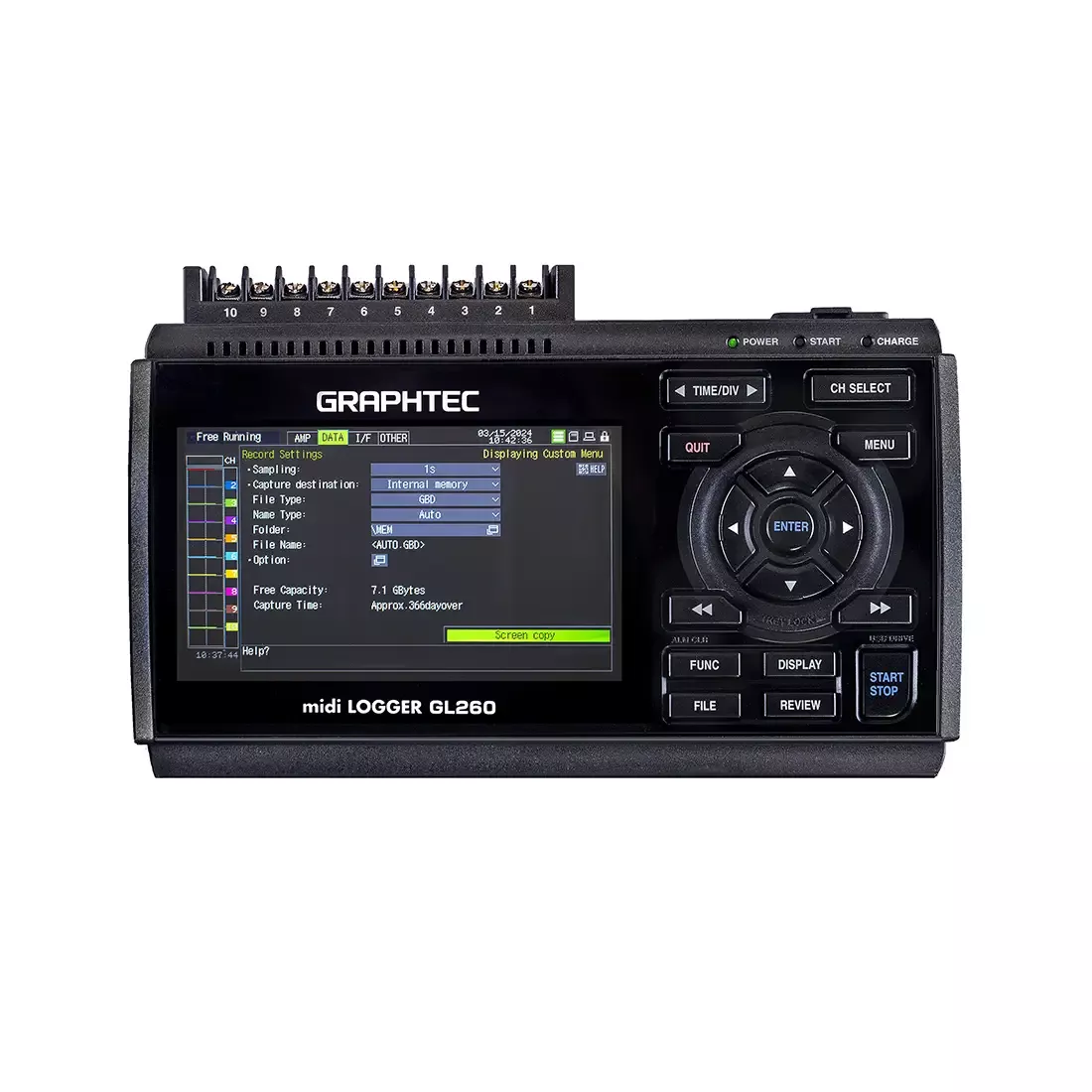

Display
High-resolution 4.3-inch TFT color liquid crystal display
Confirm waveforms of measured data and each channel’s settings at a glance
Data Capture
High-capacity measurement data can be saved directly in internal memory or SD memory card
SD memory card is used as external memory
Measure long periods of time with peace of mind with data backup
Because disk image can be used for internal memory, multiple data can be saved
New ring memory capture function maintains latest data even after capturing for long term
For voltage, temperature and humidity measurements, data can be captured at sampling rates of up to 10 ms per channel by using fewer measuring channels
Temperature measurement can be done at sampling rates of 100 ms and higher
Equipped with relay recording function, and 2000MByte or more data can be saved by switching to other file without data missing
When capacity of one file reaches 2000MByte, file is switched
Data Control and Processing
Application software provided lets users set conditions and monitor data on computer using USB interface
Application software allows users to control multiple GL260 units from single computer to easily perform multi-channel measurements
USB drive mode function enables internal memory and SD memory card to be recognized as external drive by PC
Connect GL260 to PC and turn on GL260 power while holding down [START] key
Captured data can be read from application software to files and displayed for processing
