NAVAC SK2TP1

Description

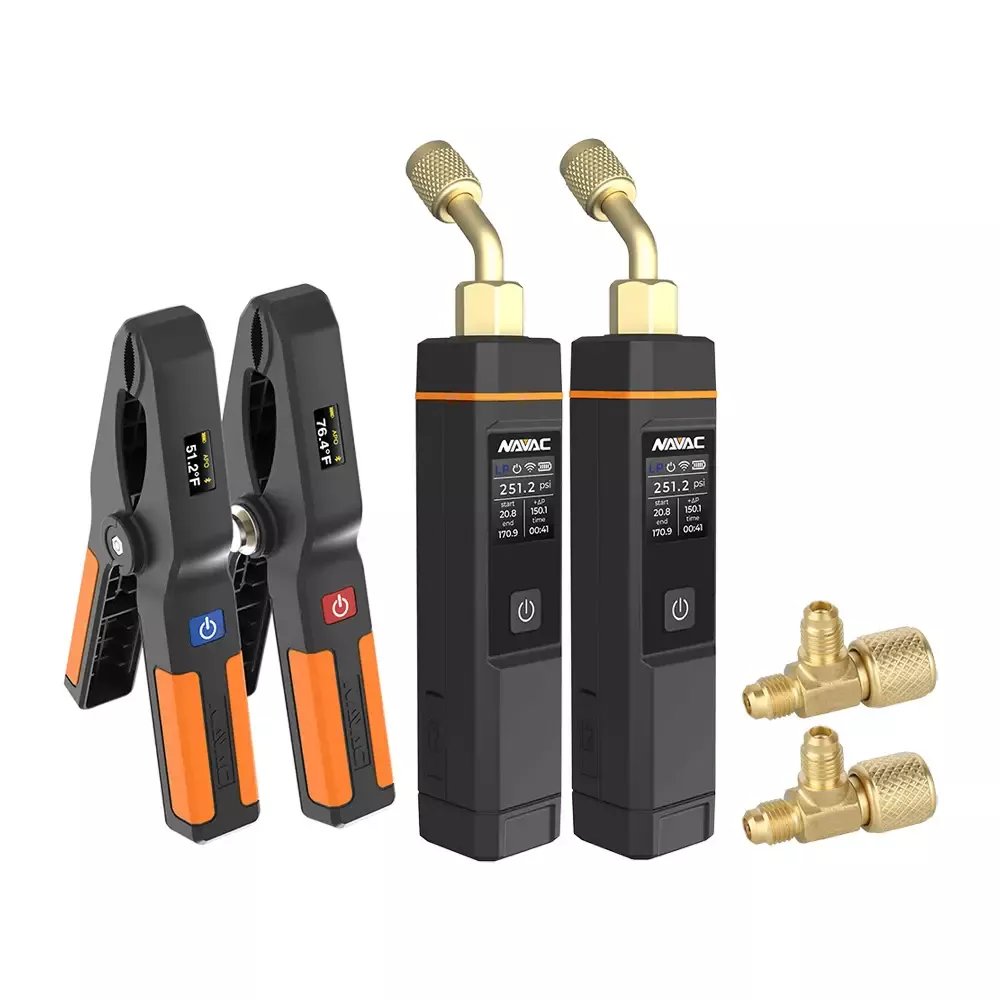

• Kit combines 1x NST1 Low-Side Temperature Clamp, 1x NST2 High-Side Temperature Clamp, 2x NSP1 Pressure Probes, and 2x F1030 Access Tee Connectors
• Kit offers comprehensive solution for refrigerant diagnostics
• 1-year warranty protects tools against manufacturer defects

NST1 Low-Side Bluetooth-Enabled Temperature Clamp/NST2 High-Side Bluetooth-Enabled Temperature Clamp

• Provides users with precise temperature control and readings
• NST1 connects to low side of system, NST2 connects to high side of system
• Wireless Bluetooth connection with myNAVAC app and NEXUS Digital Manifold Gauges (sold separately)
• Digital display allows for easy and accurate readings
• High-accuracy thermistor sensor with one-button operation
• Large 1-5/8 in. clamp opening
• 2x AAA batteries provide up to 150 hours of battery life
• Auto power-OFF feature works to conserve battery life after periods of inactivity
• IP54 rating for resistance against dust and water
• Temperature Measurement Range: -40°F to 257°F (-40°C to 125°C)
• Maximum Tube Outer Diameter (O.D.): 1-5/8 in. (42 mm)

NSP1 Bluetooth-Enabled Pressure Probe

• Provides users with precise pressure measurements
• Smart functions include auto-VSAT/LSAT calculations (through app), simultaneous pressure and temperature display, and pressure decay testing
• Wireless Bluetooth connection with myNAVAC app
• Works with or without connection to myNAVAC app
• Able to function as standalone digital pressure probe due to large digital display
• Large digital display allows for easy and accurate readings
• High-accuracy sensor with one-button operation
• Easy-to-switch knob suited for high (HP) or low (LP) side
• Rechargeable lithium battery provides up to 150 hours of battery life
• Auto power-OFF feature works to conserve battery life after periods of inactivity
• A2L refrigerant compatible
• Pressure Measurement Range: -29 inHg to 725 psi
• Maximum Overload Pressure: 1087 psi (7500 kPa)

F1030 Access Tee Connector

• Includes 1x core and 1x cap per connector
• Fit Configuration: 1/4 in. SAE-M x 1/4 in. SAE-F with depressor x 1/4 in. SAE-M
• Quantity: 2 pc.
