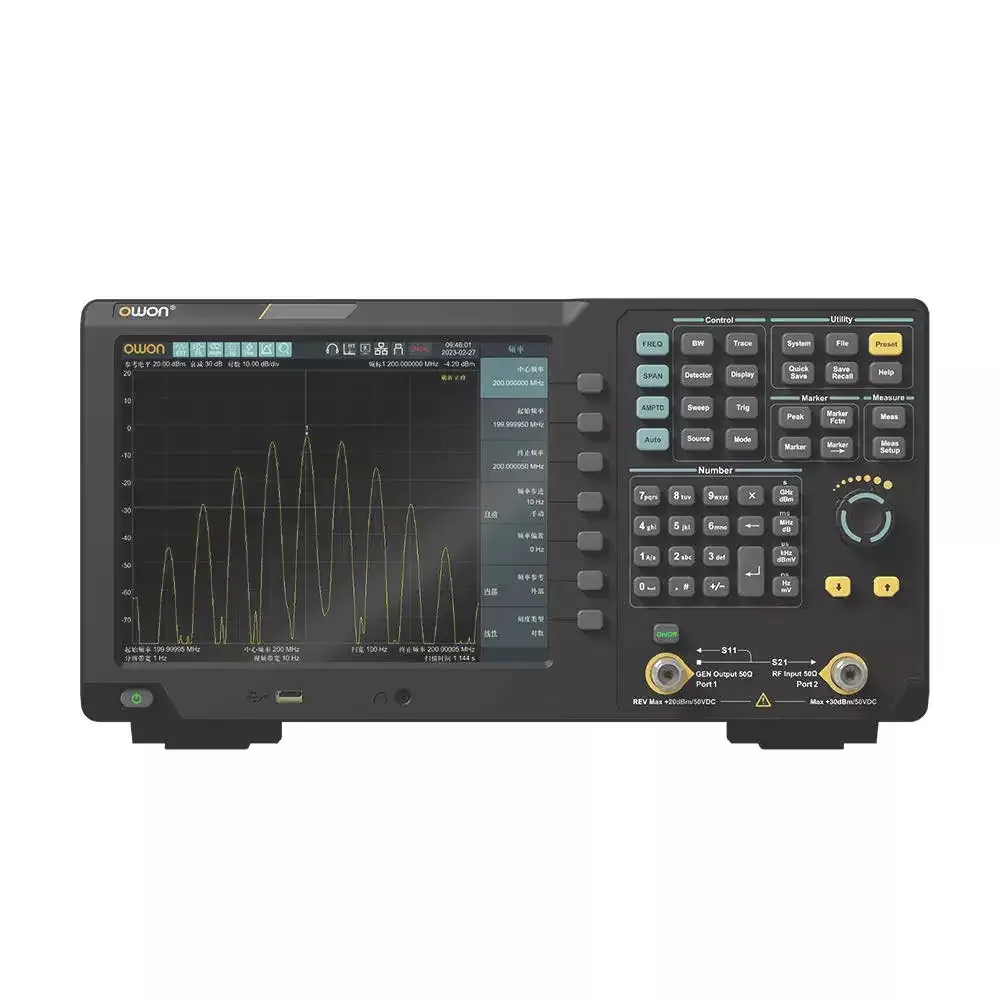

Owon XSA3060-R

Sale!
Owon XSA3060-R

Owon XSA3060-R

Original price was: $5,999.40.Current price is: $3,764.00.

78 in stock

SKU: XSA3060R Category:

Description

  • Spectrum Analyzer Frequency Range from 9 kHz to 6 GHz
  • Vector Network Analyzer Frequency Range from 100 kHz – 6 GHz
  • 100% POI 6.25μs, Dynamic Range 60dB
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -106dBc/Hz@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • 1Hz Minimum Resolution Bandwidth (RBW)
  • Full Amplitude Accuracy <0.7dB (Typ.)
  • Preamplifier and Tracking Generator Standard
  • Standard 100 MHz Real Time Analysis Bandwidth
  • Distance to Fault Mode (Standard)
  • Multiple display modes (Probability Density Spectrum, Time Power, 3D, etc.) for multi-dimensional viewing of complex transient signals
  • EMI Measurement Software (Optional, Not Included)
  • 10.4 inch Multi-Touch Screen, Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation
  • Communication Interfaces: LAN, USB Device, USB Host
