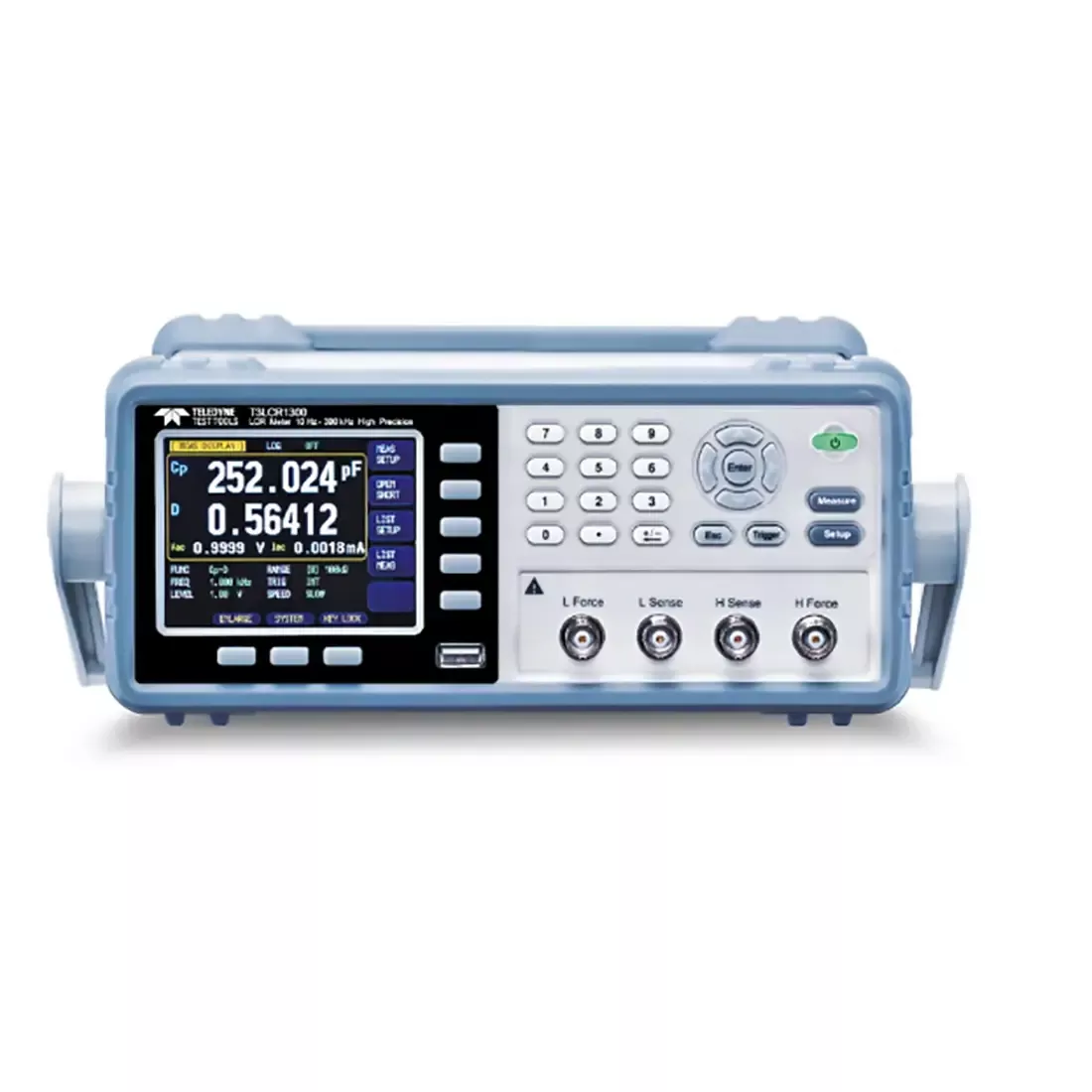

Teledyne LeCroy T3LCR1300

Description

• Test frequency range: 10 Hz to 300 kHz
• Measurement resolution: 4-Digit
• Test speeds: Fast (25 ms); Medium (100 ms); Slow (333 ms)
• Basic accuracy: Slow/Med 0.05%; Fast 0.1%
• Output impedance: 30 Ω / 50 Ω / 100 Ω (selectable)
• 3.5 in. Large TFT-LCD display offers clear visibility of power settings
• Continuous, adjustable test frequency ranges deliver flexibility for various components
• Equipped with full frequency range zero and spot frequency zero selections for OPEN/SHORT fixture compensation function
• 16 Major/Secondary parameter measurement combinations and 2 additional monitoring parameters (maximum four different parameters can be shown simultaneously)
• DCR Measurement and Internal D.C. Bias Voltage (± 2.5 V)
• Provides PASS/FAIL test function helps boost validation process speeds
• Standard interface: RS-232C, Handler, USB and USB Storage
• Auto Level Control (ALC) function
• BIN function provides 10 BIN (9 BIN, AUX: 1 BIN)
• List Measurement feature performs automated sweep measurements by listing up to 10 frequency or amplitude points
• Compact size ideal for automatic equipment
