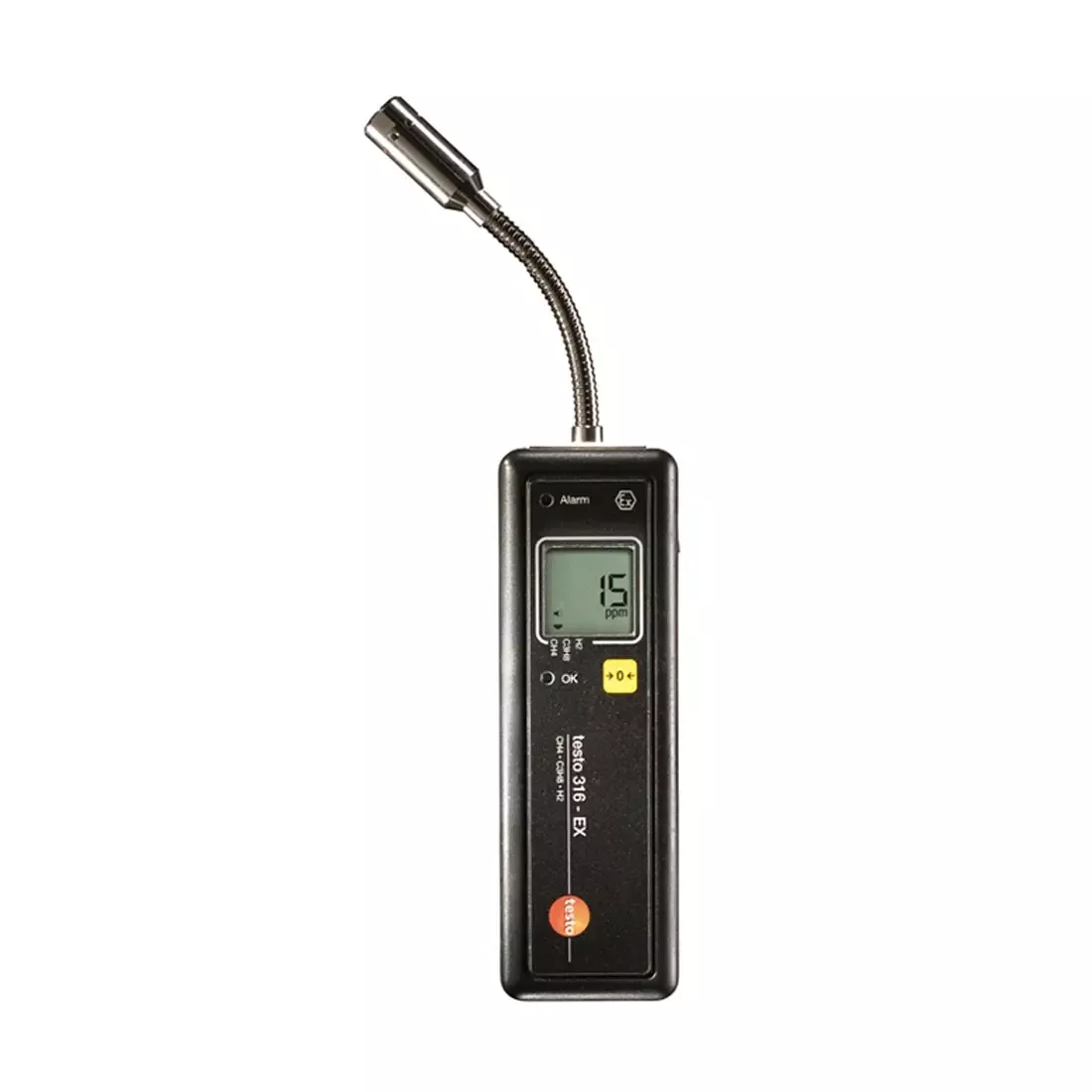

Testo 316-EX

Description

• Multi-range gas detector for gases of methane, propane, hydrogen
• Measures proof of gas/leakage localization on gas pipes/installations both within indoor/outdoor areas
• Aids in checking sections of gas pipes for leak tightness to locate possible leaks
• Intrinsically safe design with EX-protection for use within hazardous areas
• Conforms to 94/9/EG (ATEX) guidelines
• Gas concentrations measured by semi-conductor sensor within ppm range, shown in display with 1 ppm resolution
• Flexible measurement probe for inaccessible pipes
• Indicator suppression for comfortable locating of leak

Specifications

• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Dimensions (Housing): 5.31 in. x 1.77 in. x 0.99 in.
• Sensor Length: 7.87 in.
• Protection Class: IP54
• EC Directives: 2014/34/EU (ATEX), EN 60079-0: 2012 + A11:2013, EN 60079-11: 2012
• ATEX Instrument Labeling: 1258 EX II 2 G Ex ib IIC T1Gb
• Battery Life: ~6 to 10 hours

Flexible Sensor Probe

• Sensor Type: Semi-Conductor
• Methane (CH4) Measuring Range: 0 ppm to 2.5 vol. %
• Propane (C3H8) Measuring Range: 0 ppm to 1.0 vol. %
• Hydrogen (H2) Measuring Range: 0 ppm to 2.0 vol. %
• Response Threshold: 1 ppm
• Reaction Time: 14s
